MY-X100100BS-Dvi (Dual View) Single-Source Photon-Counting X-ray Baggage Inspection System (Transmission + Backscatter)

Keselamatan Billion Prima Sdn Bhd

Billion Prima Sdn Bhd

E-mel

Pengenalan

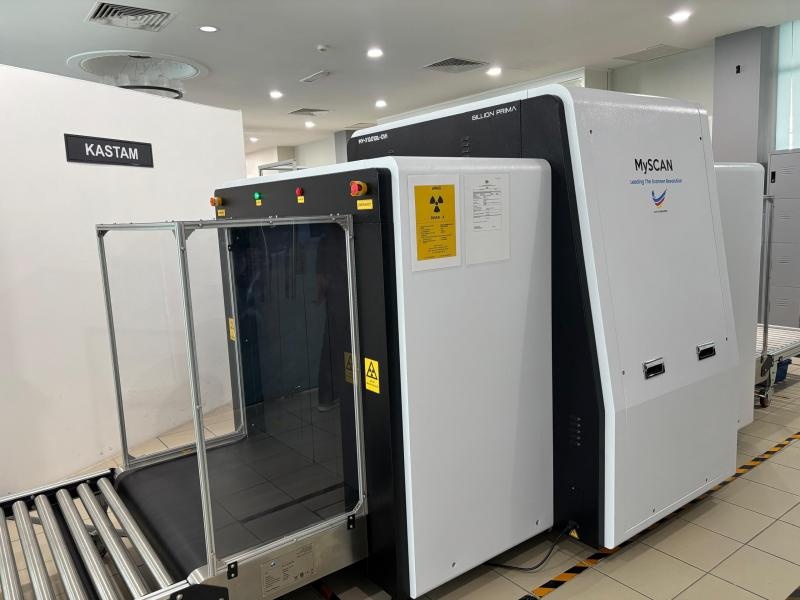

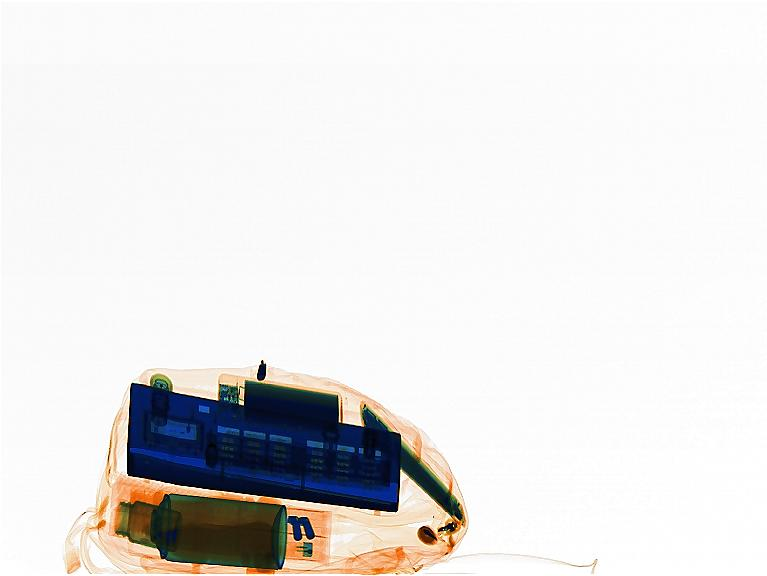

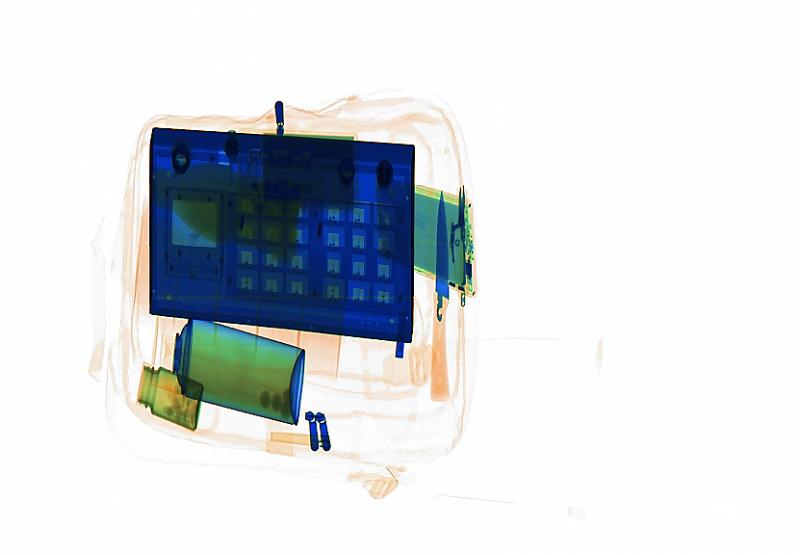

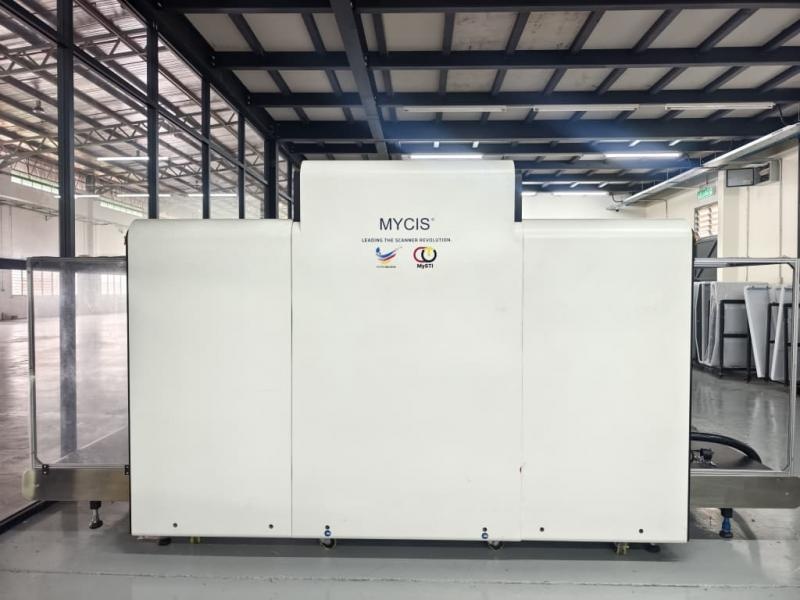

The MY-X100100BS-Dvi baggage screening system integrates transmission and backscatter imaging in a single-source, photon-counting X-ray architecture, eliminating the need for multiple X-ray sources. This reduces hardware complexity, lowers energy consumption, and enables a compact, reliable solution. 100 cm × 100 cm tunnel supports screening of bigger baggage and parcels. The backscatter detector is highly sensitive to organic substances, supporting detection even when targets are stacked with metals or other inorganic materials. The system delivers high-definition images that improve recognition and operator decision-making, enhanced by Super Resolution processing. The Dual View + Backscatter configuration forms three images per scan: Top-view and Side-view Transmission, and a Backscatter image.

Pensijilan

Diperakui MySTI

STI202601848

Harga Anggaran

RM 400,000.00

Nombor Pendaftaran SSM 771035-V

Nombor ePerolehan K66294429163307310

Nilai Tambahan

Single X-ray Source for Transmission and Backscatter Detectors (Photon Counting Technology)

The backscatter detector with photon counting technology, detects from the same X-ray source as the transmission detector—unlike conventional backscatter technologies such as Compton scattering, which require a separate, dedicated source. This design eliminates the need for an additional X-ray source, reduces power consumption, and delivers a compact, cost-efficient baggage screening solution.

Enhanced Detection of Organic Substances

The backscatter detector is sensitive to low-atomic-number (organic) materials, enabling the detection of organic substances even when they are stacked or covered with inorganic items or metallic objects. Unlike conventional imaging where metals hide the detail of organic materials, backscatter imaging highlights low-atomic materials, ensuring organic threats are detected.

Enhanced Image Quality with Super Resolution

Raw image data from detectors is small, noisy, and low in quality due to the limited size of the original image. Therefore we implemented Super Resolution technology to enhance image quality and resolution, producing sharper image. This improvement allows operators to identify details of organic materials more effectively.
