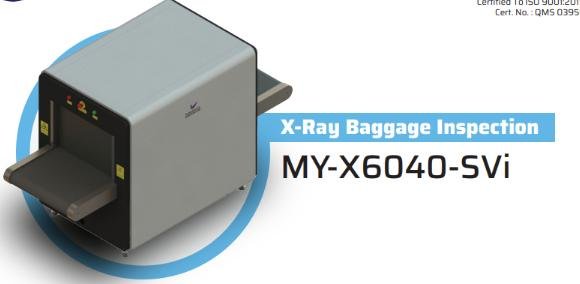

The MY-X6040-SVi is a dual-energy X-ray scanner designed for continuous security screening through a 60 cm × 40 cm tunnel. Its dual-energy technology enables effective material discrimination, while AI-assisted detection supports identification of potential threats.

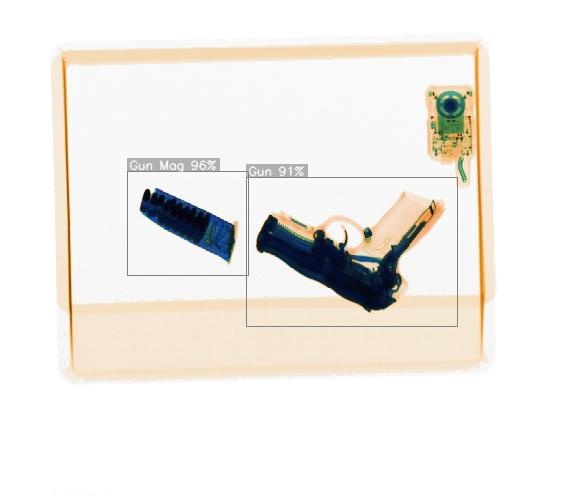

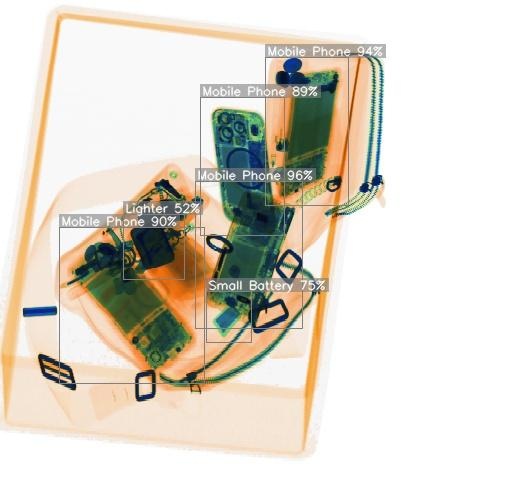

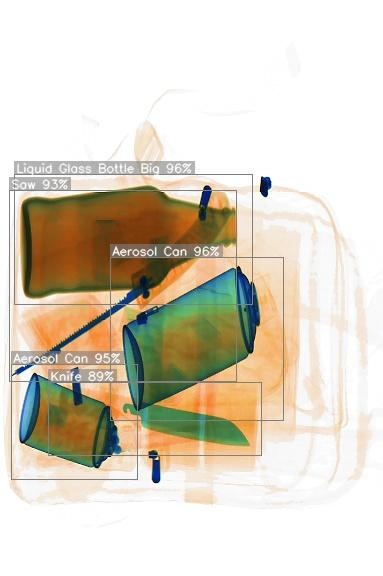

The MY-X6040-SVi incorporates AI-assisted automatic threat detection to help operators identify suspicious objects during the scanning process. This can reduce the likelihood of overlooked objects, support faster decision-making and improve screening consistency during busy or extended operating periods.

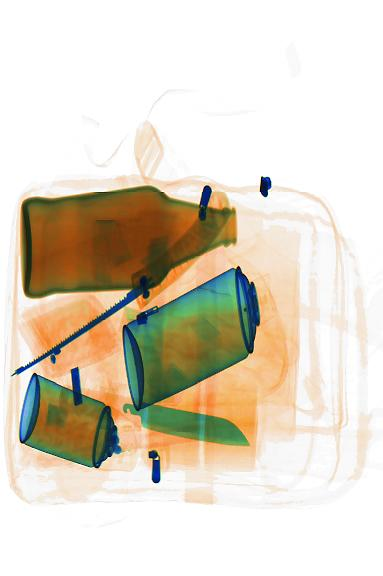

The scanner provides material-classification capabilities supported by four colour imaging, grayscale imaging and optional six-colour dual energy imaging.
Organic and mineral stripping, pseudo-colour imaging, high and low penetration modes, density alerts and edge enhancement functions allow operators to separate and examine materials more effectively.
The MY-X6040-SVi is designed for sustained screening operations through its sealed oil-cooling system and 100% X-ray duty cycle. Its conveyor operates in both directions at 0.2 m/s and supports loads of up to 160 kg, allowing baggage to be repositioned or rescanned efficiently without unnecessary manual handling.
The MY-X6040-SVi delivers up to 34 mm steel penetration, 40 AWG wire resolution
