Wireless Transmission Radiation Portal Monitor System - MyRPM

Pembinaan Alam Sekitar dan Teknologi Hijau Keselamatan Billion Prima Sdn Bhd

Billion Prima Sdn Bhd

E-mel

Pengenalan

Malaysia is the earliest countries to integrate the RPM into the cargo X-ray scanner since 2006. AELB (JTA) has played an important role to focus the radiation waste checking at the seaport and border togethe with JKDM.

This technology is utilized the physical effect of the plastic scintillator & photo multipliying tube (PMT) to achieve the large area radiation detection. We have breakthrough all the technical limitation of conventional RPM and improve it to latest cutting edge technology to match with the digital and cloud base era. hence, the wireless transmission RPM concept is established to resolve the limitation in 20 years ago.

Limitations of Conventional RPM
- susceptible to lighning strike
- RPM must be installed within 1000m from the control room due to the data transmission constraint.
- extremely slow report generation. take about 12s.

Pensijilan

Diperakui MySTI

STI202300169

Nombor Pendaftaran SSM 771035-V

Nombor ePerolehan K66294429163307310

Nilai Tambahan

1st and ONLY ONE Radiation Portal Monitor (RPM) manufacturer & R&D centre in Malaysia.

- Customize the RPM system according to the customer's requirements at different occasionals for example mining, scrap metal yard, security border and seaport application.

- Tax free to promote the MyRPM within the Southeast Asia Region or CPTPP.

- Immediate local talent and support to the system. Not need to hire overseas engineers to setup and training. Job creation and talent development into the Centre of Excellence (CoE).

Wireless transmission & Power up by solar & battery system

- Not need to pull the power cable from substation or electrical distribution box. Power up solar and battery. extremeless less power consumption. ~ 50 Watt/hour (max) per panel

- Invulnerable to the lightning strike. convert the conventional analog data transmission to network and wireless 4G/5G tranmission. No more damage to the sensitive components during lightning strike.

- no tranmission limitation due to wireless. as long as there are 4G/5G signal and sufficient sunlight.

conventional RPM limit to max 1000meter (limitation of RS485, longer the distance, lower SNR and false alarm).

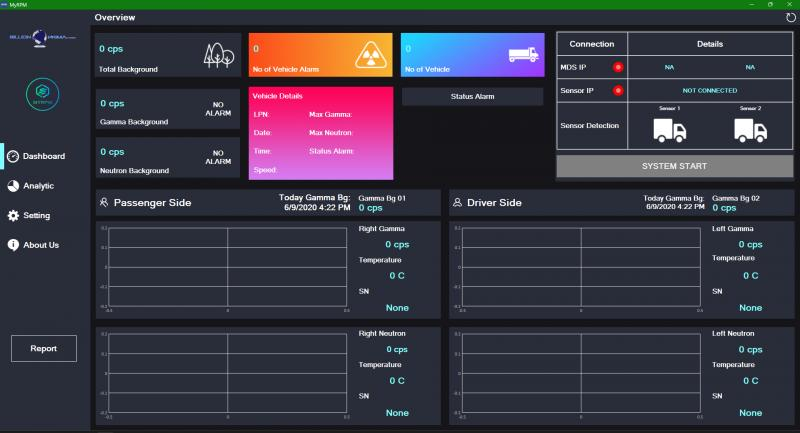

Link to a cloud server and monitor anytime, anywhere

- The central command centre can be anywhere as long as there is internet access. MyRPM will send all the data and reports to the cloud server.

- Ease of the Jabatan Tenaga Atom or MOSTI to observe and monitor all the nationwide RPM in Malaysia.

- The mobile app version will have a push notification to the vehicle detail, which trigger the radiation alarm to take immediate action.

Alternative Marketing Approaches

- instead of upright purchase approaches from most of the overseas distributor companies. We can offer the leasing scheme to all the interested or regulated companies.

- JTA can observe and monitor simultaneously; this is one of the criteria for high-risk industry to renew their license. For example, JTA may spot-check the premises if the RPM triggers an alarm frequently.
